Caged DIY Rosin Press Kits - User Manual & Troubleshooting

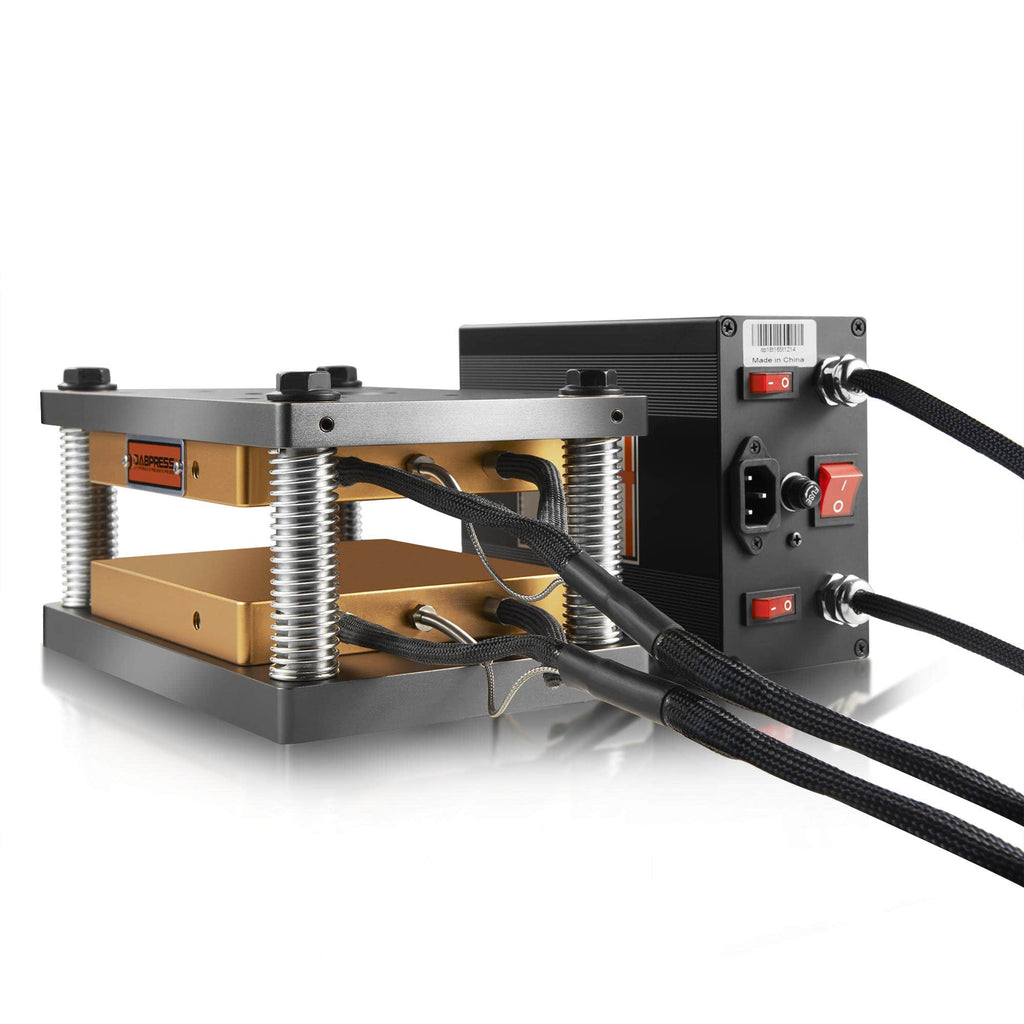

User Manual & Troubleshooting Caged rosin press plates kit (dp-rp35sdp-rp37 and dp-rp557)

Recommendations on Materials Loaded

1 - High Amounts Loaded:

  • 28g dp-rp35s | 3x5" size heated platen
  • 35g dp-rp37 | 3x7" size heated platen
  • 63g dp-rp557 | 5.5x7" size heated platen

    2 - Filter for Pairing:

    • Flower 90-160 micron

    • Sift 37 micron
    • dp-rp35s - 2x4” or 2.5x4.5” filter size
    • dp-rp37 – 2x4” , 2.5x4.5” or 3x7” filter size
    • dp-rp557  – 2x4”, 2.5x4.5”, 3x7” filter size or cut to size sheets for large pucks.
    • Rosin filter bags collection - shop now

      3 - Pre Press Mold for Pairing:

          Installation Instructions

          1. Prepare your shop press for use according to their instruction manual before proceeding to the next step.
          2. Place bamboo insulation plank on top of your shop press’s arbor plates
          3. Place the caged frame on top of the bamboo insulation plank.
          4. Lower the piston on your shop press to the top center of the caged frame. Position the caged frame accordingly.
          5. 5. Your DIY hydraulic heat press build is now complete.
            Tip: The bottom plate holder doesn't include to the caged kits.

            How to Begin

            1. Plug in power to the Temperature Control Box. Turn on both platen power sub-switches and main power.
            2. Set the desired temperature on Temperature Control Box. Our recommendation of 160-200F for fine material, 180-220F for flower
            3. Operate your shop press by lowering the piston to the center of the caged frame.
            4. Prepare your material either by hand or with your puck maker.
            5. Insert parchment paper in-between open plates, then insert your puck.
            6. Operate your shop press to close the platens down and begin compressing the material (finer material such as sift, must apply pressure at a much slower speed as to prevent your filter from blowouts) Continue to slowly apply pressure until either the color darkens considerably or you feel it is already tight.  The pressure will ease off as the oil flows out, at this time we want to bring the pressure back to where it was.
              Tip: Using only enough pressure will give a higher quality extraction as to not introduce non-essential oils. If the parchment paper tears or is stained through to the other side, it is a good indication of excessive pressure.  Try and aim for a tight feeling on the puck but not so tight that you have to put a lot of effort into your handle.
              Tip: If your press has a pressure gauge, we want to apply 1000 PSI at the material for flower and 500 PSI at the material for sift. You will need to calculate your pressure correctly to apply the desired PSI at the material since puck size will vary.
            7. Start a timer for 90 seconds on your smartphone. Check for additional flow during this time, and determine when to end your pressing time.
              Tip: Extraction times will vary, so it's important to let the flow of your extraction be your guide. Higher temperatures extractions will finish faster than lower temperatures.
            8. Operate your shop press to release the pressure.
            9. Remove parchment paper and puck carefully from the open platens.
            10. Collect your material, a cold plate from the freezer may help in your collection.
            11. Place collection in a storage container.
            12. Power off the Temperature Control Box if your pressing time is over.

                     * Repeat steps 3-11 to continue working.

            Important Notices!

            1. Turn off the temperature control box when finished working to prevent overheating of your hydraulic system.
            2. Use of the included bamboo insulation plank will prevent your shop press from heat draining.
            3. Always wear eye protection.
            4. Keep hands out of the working area.

            Questions & Answers:

            • Question: Can I use an A-frame shop press with heat press plates kit?

            • Answer: Usually A-frame shop press does not have clearance for heated platens, please check the clearance of your desired press.
            • Question: Can I use an arbor press with heat press plates kit?
            • Answer: Usually an arbor press does not have clearance for heated platens, please check the clearance of your desired press.
            • Question: What Humidity level should my flower be stored in?
            • Answer: 62% is the recommended stable relative humidity (RH) inside of your flower container.
            • Question: How to measure the humidity in my flower container?
            • Answer: A small hygrometer will give you the humidity levels inside of the container.
            • Question: Can I re-press my pucks?
            • Answer: Yes!  Simply fold the puck in half and re-press it.  You might have to use higher temperature to get an extraction.
            • Question: Do I need to use filter bags for flowers?
            • Answer: No, you can press single flowers and get great results, you can also use the pre press molds to form pucks to press without the use of filters.  Keep in mind when not using filters that the puck will expand a bit larger.
            • Question: How many tons does my shop press need for my platens?
            • Answer: It depends on a couple of factors.  Mostly it will depend on what size pucks you are pressing.

            We suggest using at least 1000 pounds (1/2 of a ton) of force per square inch of puck size for flower materials loaded.  Only 500 pounds (1/4 of a ton) of force per square inch of puck size for sift materials loaded.

            Usually 6-10 tons for 3x5” platens, and 10-12 tons for 3x7” platens, 20-30 tons for 5.5x7” platens.

                  Troubleshooting:

                  1 - How to avoid the filter bags from blowing out?

                  • Remove excess stems from flowers.
                  • Use less material in your filter bag.
                  • Preheating your material first to get it melty before you begin to apply pressure.
                  • Apply the pressure more slowly.
                  2 - How to apply the pressure for optimal yield and quality?

                  • Flower is the easiest material to extract. Slowly compress the puck until the oil begins to flow. As the extraction is flowing, it is important to keep some weight of downward force on the jack handle to maintain the level of pressure in which the oil is releasing. By applying too much pressure we may experience blowouts, or even introduce plant matter into our essential oils. Once the puck is mostly extracted you should no longer feel any more release of pressure on the jack handle.
                  • Sift and fine material will take some practice, so we advise to preheat your puck between closed platens.They need to only touch the top and bottom of the puck for preheating. No pressure is required. Allow the puck to preheat for 20-30 seconds. At this time the puck should be melty and more likely to flow out instead of building up pressure inside which may cause a blowout. Gently apply pressure onto the puck and give it time to release the oil, slowly applying the pressure throughout the entire extraction.
                  3 - The yields are not very good.

                  • If pressing flower, verify your sealed storage jar’s humidity level is between 60-65%
                  • Try a different variety.
                  • Sifting or hashing it first will allow you to press out a product with acceptable yields.

                  4 - The top platens do not stay in alignment.

                  • Since the top platen is secured onto a cylinder shape ram, it is impossible to lock it on so it won’t ever twist around.  For this reason, we suggest preparing the alignment of the top platen after the materials are loaded but before you begin to apply your desired pressure.  Use a heat resistant glove if necessary to position the plate into alignment.

                  5 - One of the platens is taking longer to heat up.

                  • Insure bamboo plank is installed between the bottom heated platen and the arbor plates on your shop press to prevent heat draining.
