Why Won't My Rosin Press Piston Retract? Hydraulic Reset Guide
Posted by DABPRESS OWNER
Technical Maintenance Data: System Symptom: Piston rod extends but fails to retract. Interface Standard: NPT 1/4” Male/Female High-Pressure Couplers. Reset Parameters: 5-minute low-point fluid settlement, 30-second rear valve air purge. Coupler Warning: Incomplete connection creates a one-way check-valve effect, blocking retraction.
Hydraulic Mobility: Why Your Piston Rod Won't Retract
If your hydraulic ram extends under pressure but fails to move back after opening the release valve, the system is likely suffering from an air-lock or a blocked return path within the coupler. This technical SOP provides the corrective path to restore full cylinder functionality.
01. Identifying Coupler Misalignment
A stuck piston is most frequently caused by an incomplete connection between the male and female NPT 1/4” fittings:
•The One-Way Effect: If the male fitting is not pushed fully into the female coupler, fluid can enter the cylinder but cannot escape, locking the piston in the extended position.
•Seized Nut: If you cannot unthread the coupler nut, the line is under backpressure. Slowly loosen the female fitting on the cylinder with a wrench (wrap in a towel first) until a small amount of fluid escapes to release the lock.
02. 7-Step Air Purge & Retraction Reset
Follow these steps to clear air entrapment and equalize system pressure:

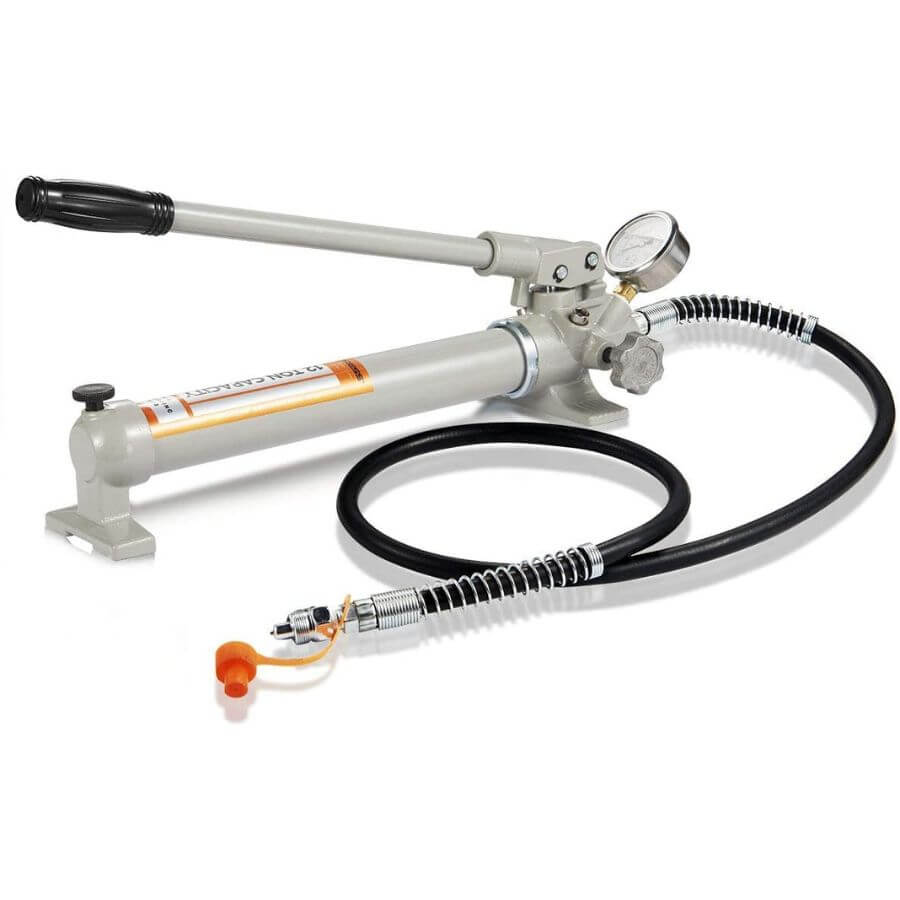

1.Disconnect the hand pump from the cylinder. Place the pump on a table with the hose hanging off the edge so it is lower than the reservoir.
2.Open the front release valve one full turn; leave open for 5 minutes.
3.Close the release valve tightly.
4.Open the air bleed valve (at the rear of the pump) two full turns for 30 seconds.
5.Hand-tighten the bleed valve until fully closed.
6.Reconnect couplers, ensuring the male fitting is pushed deeply into the female socket while locking the nut.
7.Retest the piston movement.
Technical Note: Using 1/4" NPT fittings from third-party manufacturers can cause fitment tolerance issues. We recommend replacing non-branded male fittings with Dabpress standard couplers to ensure a 100% seal and smooth retraction.
03. Success Factors for Hydraulic Longevity
•Standard Connection: Always push the male coupler fully into the female fitting *before* tightening the nut. Finger-tight is not enough; a secure seat is required to bypass the internal check-valve.
•Air Bleeding: Spongy handle feel or erratic retraction are early warning signs of air in the circuit. Regular bleeding prevents internal spring fatigue.
Safety Warning: Under high pressure, hydraulic fluid can spray with significant force. Always wrap fittings in a towel during emergency decoupling and wear protective eyewear.
DABPRESS ENGINEERING DEPT. | DOCUMENT ID: PISTON-RESET-2026
