How to Replace the Bottle Jack on Your Rosin Press: Alignment & Setup Guide
Posted by DABPRESS OWNER
Technical Maintenance Data: Replacement Standard: Compatible with 4T and 6T bottle jack rosin presses. Alignment Logic: Centralized mounting via pressure-seating (platen contact method). Fixation: Base-plate mounting bolts and collar adjustment. Pro Strategy: Align platens under light hydraulic pressure before final bolt tightening to ensure 100% parallelism.

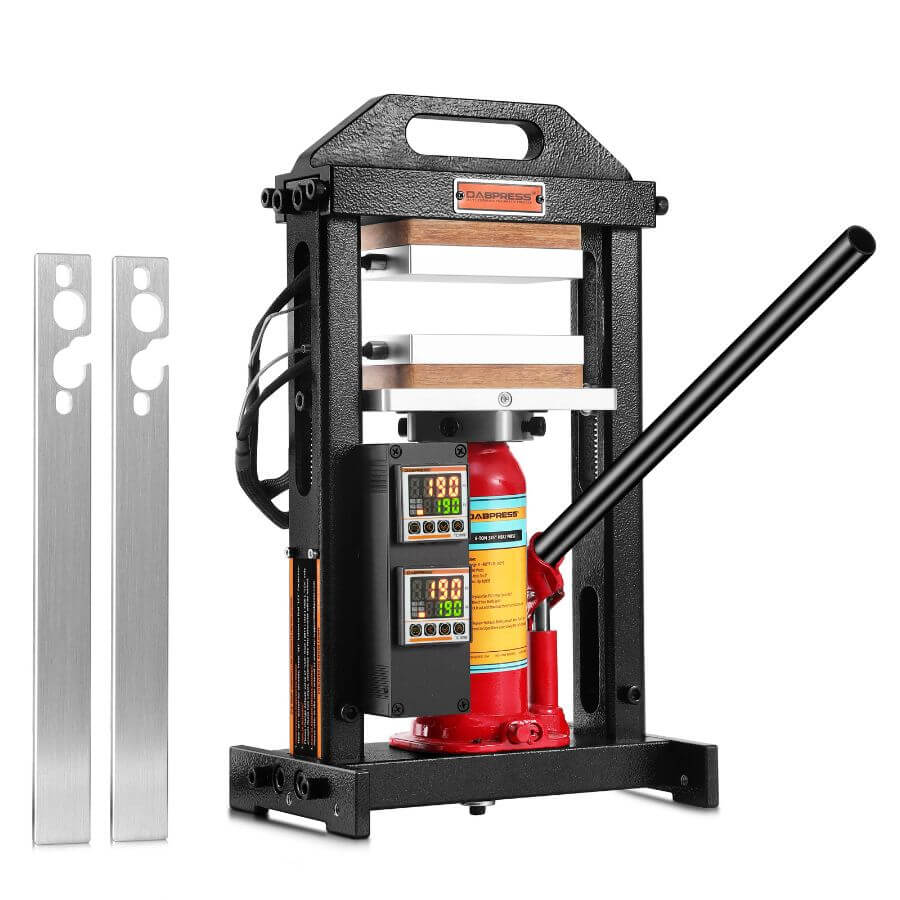

Hardware Recovery: Step-by-Step Bottle Jack Replacement SOP
If your integrated bottle jack is experiencing internal seal failure or a loss of tonnage, replacement is required to maintain extraction efficiency. This guide ensures that your new hydraulic unit is perfectly aligned with the heated platens to prevent uneven pressure and frame damage.
01. Safe Removal of the Original Jack
1.Loosen Fasteners: Loosen the mounting bolts located under the press base and on the stabilizing collar (if your model includes one).
2.Platen Clearance: Ask an assistant to help lift and support the top heated plates to create enough clearance to slide out the old unit.
3.Extraction: Carefully remove the bottle jack from the center of the press frame.
02. Precision Alignment & Seating
Alignment is the most critical step. Misaligned platens will result in poor yields and potential "ghosting" (bag blowouts):
4.Pre-Installation: If your replacement jack features a threaded base, pre-install the screws and nuts loosely. Do not tighten them at this stage.
5.The Contact Method: Use the jack handle to lift the new ram until the dual heated platens touch each other. Visually inspect and manually adjust the jack until the plates are perfectly aligned and flush.
6.Final Lockdown: Apply firm hydraulic pressure to push the plates together harder. While the system is under pressure (keeping the ram centered), tighten all base and collar bolts securely.
Technical Note: You do not need to drill or tap new threads into a replacement jack. As long as the unit is center-mounted and aligned during the "contact phase," the base bolts will hold the unit securely during operation.
03. Success Factors After Replacement
•Parallelism: If the platens are tilting to one side, loosen the base bolts and repeat the "contact method" to re-center the jack ram.
•Air Bleeding: New jacks often contain trapped air. After installation, open the release valve and pump the handle 10-15 times to settle the hydraulic fluid.
Safety Warning: Heated plates are heavy. Always use a second person to hold the frame steady during jack removal. Ensure the machine is unplugged and the plates are completely cool before starting maintenance.
