Rosin Press with Pressure Gauge - Affordable 10-ton Rosin Press Machine
Trying to get a jump on the affordable DIY hydraulic hand pump, hose, and gauge.
I have not tested any of this yet, but putting this up here as it's as close as I've got. Will likely be ordering the bushing and adapter once I have the parts in hand to verify the fittings.
This is what I am thinking right now, the fittings make this a more expensive option =/

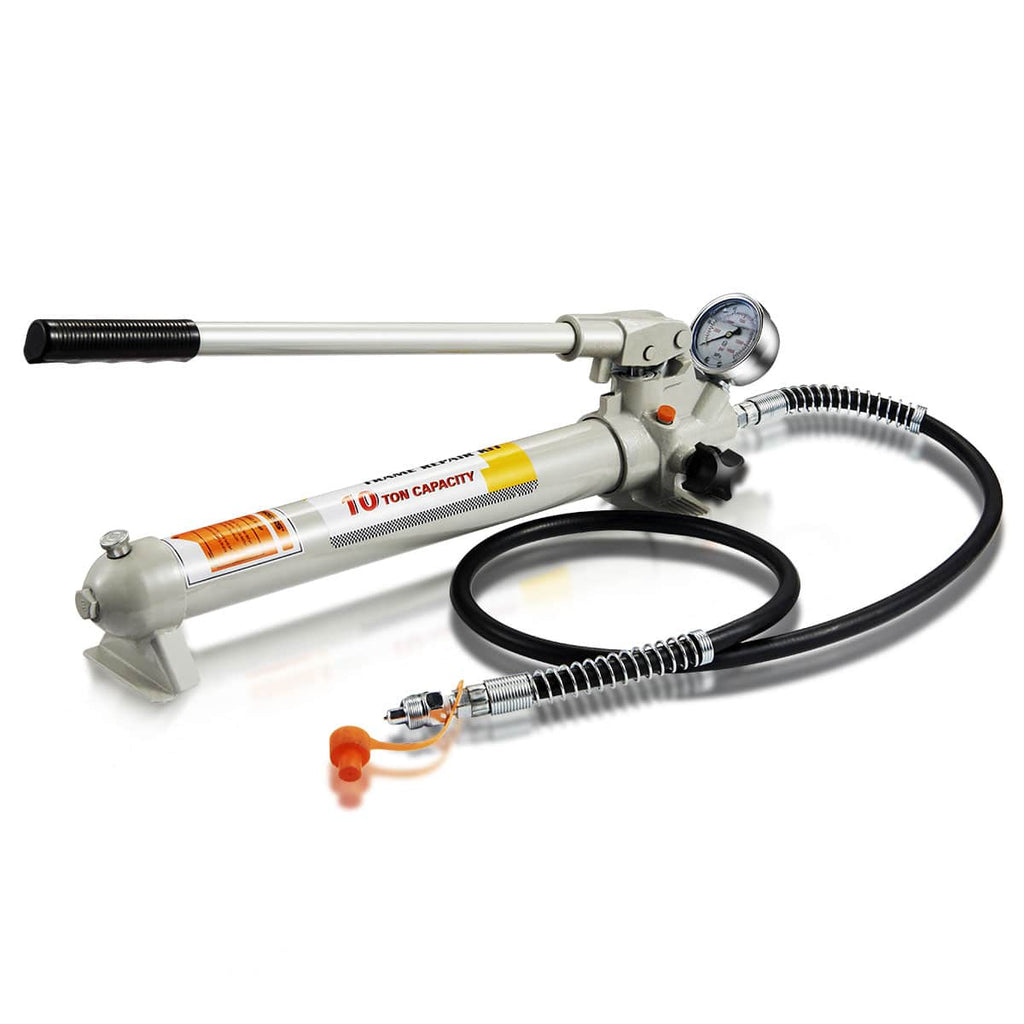

1) Generic 10-ton hydraulic hand pump with hose 10000 PSI rated (1/4" NPT threads on hose)
$44 - https://www.ebay.com/p/10-Ton-Hydra...r-Portable/1111814100?iid=251516313116&chn=ps
$48 - https://www.walmart.com/ip/10-Ton-Hydraulic-Porta-Power-Pump/121047237
$48 - https://jet.com/product/Hiltex-10-T...y-Shop-Tool/7c2bf9cc8d1749d4ba0c38675012e45f?
$50 - https://www.ebay.com/p/PORTA-Power-...me-Machine/1995439136?iid=400801893452&chn=ps
$60 - https://www.amazon.com/Goplus-Hydraulic-Hand-Pump-Replacement/dp/B01MYY9DD2
$50 - https://www.trick-tools.com/10_000_psi_Gauge_and_Fitting_Gauge_1633
or, build your own gauge with an adapter, 3/8" NPT
2b) 2 1/2" face gauge 10000 PSI rated, 1/4" NPT male fitting for adapter
$13 - https://www.northerntool.com/shop/tools/product_48262_48262
$25 - https://www.amazon.com/Winters-Stainless-Pressure-Internals-Accuracy/dp/B0087UYUJ2
$119 (digital) - https://www.amazon.com/XZT-Hydraulic-Pressure-10000PSI-4NPT-Base/dp/B0148KWB8G
+
2b) Enerpac GA3 gauge adapter 10000 PSI rated, 3/8" NPT fittings for hose and pump, 1/4" NPT port for gauge -
$66 - https://www.mscdirect.com/product/details/04843876
$15 - https://smile.amazon.com/Enerpac-FZ-1630-Reducer-Bushing-201587/dp/B00C3HSWVM
$18 - https://www.mscdirect.com/product/details/04843827
4) Enerpac 3/8" female to 1/4" male adapter 10000 PSI rated - Enerpac # FZ1055
$25 - https://smile.amazon.com/d/Hydrauli...rpac-FZ1055-Adaptor-Fitting-Female/B007XZ29R2
$25 - https://www.mscdirect.com/product/details/04843793
$134 + shipping
Build at your own risk if you don't wanna wait for me to verify! Don't forget the Teflon tape to seal all threads.
Many Thanks for @Psychonaut ( fuckcombustion.com ) Sharing!
Reviews (1 comment)
John On
It’s hard not to begin with “After extensive research” but……..I was aiming at this approach of building a separate pump to mate with the 10 ton press. After extensive research 😉 I chose to buy the 6 ton unit with integrated jack. I did so because most of my pressings will be two 7 g pucks. I’ll never need to exert more than 6 ton of pressure. I’m delighted that I narrowed it down for myself. Take away message: Before you chose a separate pump cost and build, consider if 3” x 5” plates with an integrated jack might work just as well for you 👍😉
