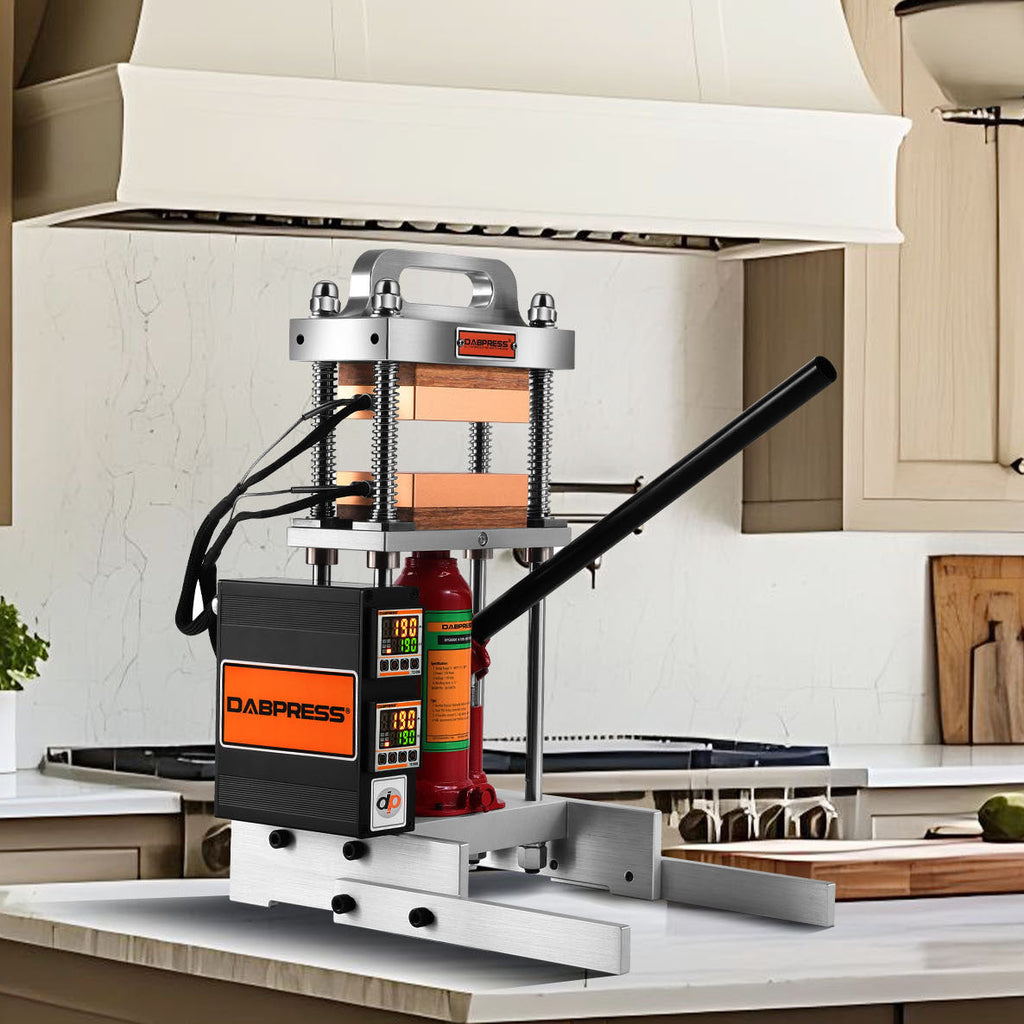

Are Pressure Gauges on Jack-Based Rosin Presses Actually Accurate?
Posted by DABPRESS OWNER
Why Pressure Readings Can Be Misleading
Short Answer: Pressure gauges measure hydraulic force at the source, but factors like frame flex, hose expansion, and surface area mean the reading doesn't perfectly reflect the actual pressure on your material. For consistent results, rely on a rigid system design and repeatable technique rather than the gauge number alone.
Hose-connected pressure gauges can provide a usable reading — but they are inherently less stable and less repeatable than rigid, directly mounted gauges. This is not about brand or component quality. It comes down to how pressure is transmitted through the system.
01. Pressure Loss Through the System
In a jack-based press, pressure is not applied in a single step. It is transmitted through a chain:
Hydraulic Jack → Frame → Plates → Material
At each stage, energy can be absorbed, redistributed, or lost. From a mechanical standpoint, any structure under load will deform — even if only slightly. Frame flex and plate deflection reduce the effective force that actually reaches the material. This is a fundamental property of real mechanical systems.
02. Hose-Connected Gauges & Variability
When a hose is introduced between the jack and the gauge, the system gains additional compliance due to three mechanical effects:
- Elastic expansion: Hoses expand slightly under load, absorbing pressure energy.
- Response delay: Fluid movement through flexible lines introduces lag.
- Connection interfaces: Each fitting introduces small potential pressure drops.
Collectively, these reduce how tightly the gauge tracks real-time pressure, making it harder to reproduce the same conditions.
03. The Benefit of Rigid Connections
Directly mounted gauges reduce variables. The pressure path is shorter and the system is more rigid. This produces a higher-fidelity pressure signal — meaning the reading is more stable, immediate, and repeatable. Rigid setups are easier to trust because they measure with fewer distortions.
04. Gauge Pressure vs. PSI at the Material
A gauge measures hydraulic pressure, but extraction depends on PSI (Pressure per unit area) at the material. Because Force = Pressure × Area, the outcome depends on the PSI at the bag — not just the total tonnage shown on the jack.
05. RECOMMENDED GEAR
- Cylinder Pre-Press Mold - Shop PrePress Mold
- Premium Rosin Bags - Shop Rosin Press Bags
- Aluminum Collection Tool - Shop CP67
06. RELATED ARTICLES
The Bottom Line: A gauge shows generated pressure; system design determines delivered pressure. Accuracy is defined by how predictable and predictable the entire system is.
